Skyline™
Clutch Operating System
Skyline Technology
The Skyline™ system features a patented, smooth, and dependable operating clutch technology in a sleeker and rounded profile. With a wide array of colors including matching rounded end caps, and mounting brackets, Skyline clutches offer greater versatility and ease of installation.
The Skyline™ system features a patented, smooth, and dependable operating clutch technology in a sleeker and rounded profile. With a wide array of colors including matching rounded end caps, and mounting brackets, Skyline clutches offer greater versatility and ease of installation.

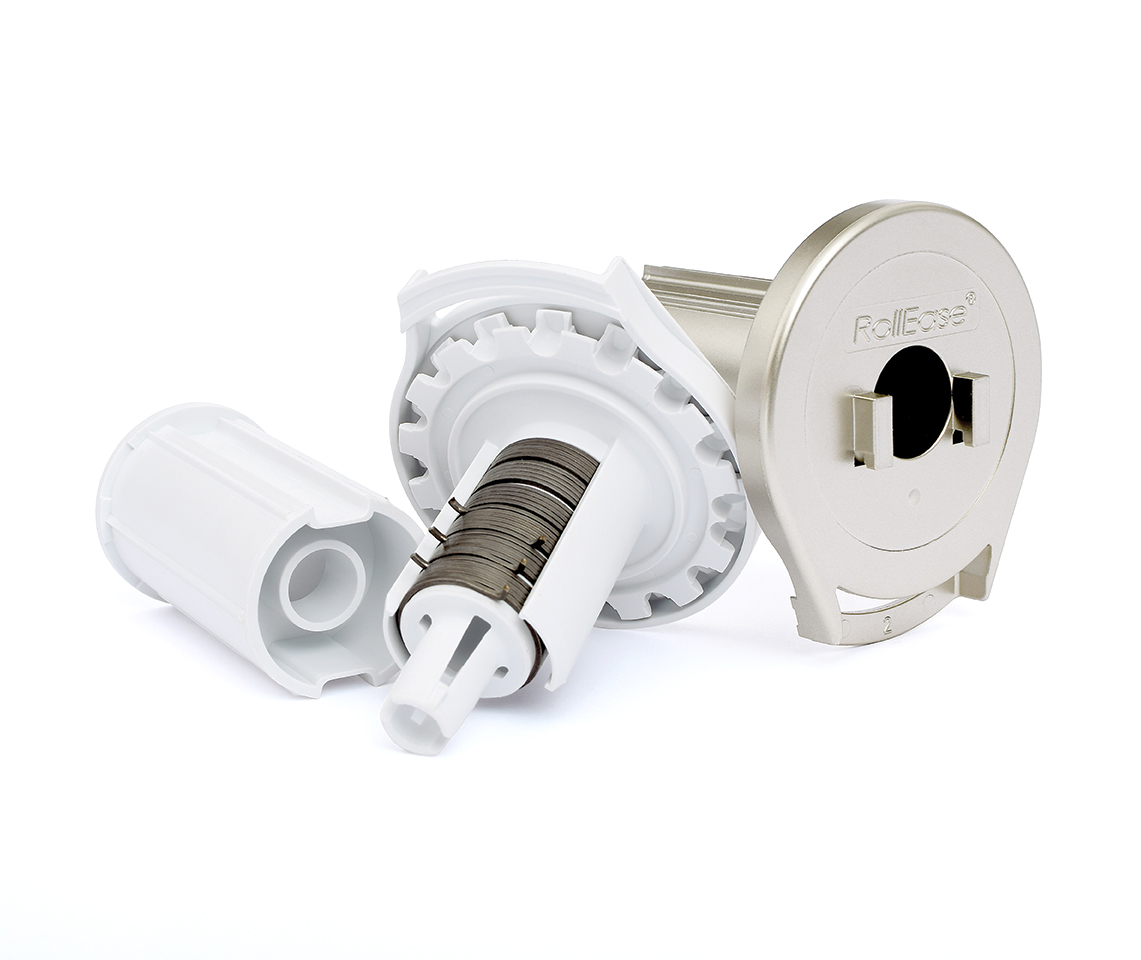

The patented Velvetrol™ internal spring arrangement enables the spring tangs to apply a balanced force on both sides of the shade simultaneously allowing for a more smooth and even distribution of forces. The even application of force creates a smoother feel whether pulling the shade up or down.
Skyline™ Clutches
Sleek, Versatile and Dependable
Skyline clutches are ideal for both residential and commercial applications. There's no need to sacrifice design for function. Skyline clutches can be used in any rolling shade where overall aesthetics are important.
The Galaxy's combination of gears and patented Velvetrol™ clutch technology creates an improved bidirectional clutch for especially large or heavy shades, such as those for lobbies, ballrooms, and panoramic windows. The unique Galaxy clutch technology enables greater weight to be lifted, but for the mechanism itself to remain small. Traditional clutches would need to expand greatly in size to accommodate the same sized loads that the Galaxy can handle in just a 1-1/2" to 2" tube diameter.

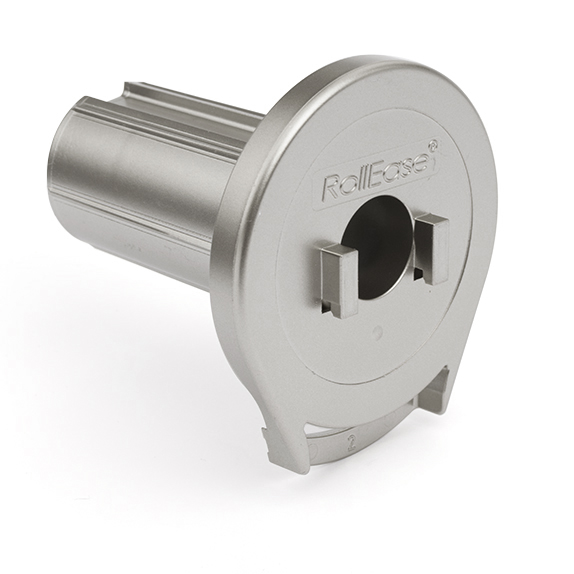

The standard clutch for Tiger shades featuring a patented smooth, and dependable operating clutch technology in a sleeker and rounded profile.
| Clutch | Tube Size Inches(mm) | Shade Weight lbs(kgs) |
|---|---|---|
| SL-15 | 1-1/8 (28) | 16.5 (7.5) |
| SL-15 | 1-1/4 (32) | 15 (6.8) |
| SL-15 | 1-1/2 (38) | 12 (5.5) |
| SL-20 | 1-1/2 (38) | 20 (9.1) |
| SL-20 | 2 (50) | 15 (6.8) |
Avaiable Colors:
Patented gear technology lifts heavier shades with minimal effort and are ideal for large commercial applications and are a cost-effective alternative to motorization.
| Clutch | Tube Size Inches(mm) | Shade Weight lbs(kgs) |
|---|---|---|
| SLG-200 | 1-1/2 (38) | 24 (10.9) |
| SLG-200 | 2 (50) | 18 (8.2) |
| SLG-400 | 1-1/2 (38) | 53 (24.1) |
| SLG-400 | 2 (50) | 40 (18.2) |
Avaiable Colors:
Skyline™ Systems

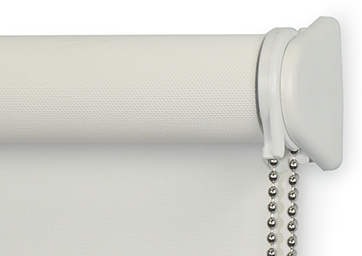

Skyline™
Open System
Base operating system
he Skyline™ open system is the core of all Tiger shade systems. Built around the Skyline Clutches, this system is sleek, versatile and dependable. Available in a variety of colors, all parts are color coordinated to match. Optional upgrade to a one piece designer metal bracket available.
Skyline Colors:
Tiger Designer Metal Bracket Colors:
Skyline™
Cassette System
A sleek, gently curved cassette with Fabric Insert
Hide those rollers neatly and achieve a finished look for your roller shade by adding a sleek, gently curved cassette. Complete system with color coordinated end caps and matching fabric insert. Compatible with the Easy Spring Plus cordless roller shade system.
- RollEase Skyline Clutch SL15 & SL20
- RollEase Skyline Clutch Galaxy G200
- Alternative Operating System: Easy Spring Ultra & Automate™ System (Please call customer service for detail.)
- Matching Fabric Insert.
Available Colors:

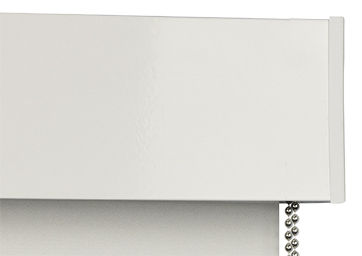

Skyline™
4 inch Fascia
There is no need to sacrifice design for function.

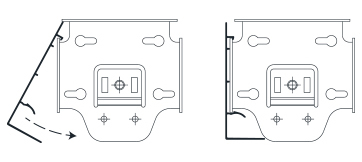

The Skyline™ 4 inch Fascia system features an all alluminum snap on Fascia Plate and color coordinated end caps. Compatible with the Easy Spring Plus cordless roller shade system.
- RollEase Skyline Clutch SL15 & SL20
- RollEase Skyline Clutch Galaxy G200 & G400
Available Colors:
